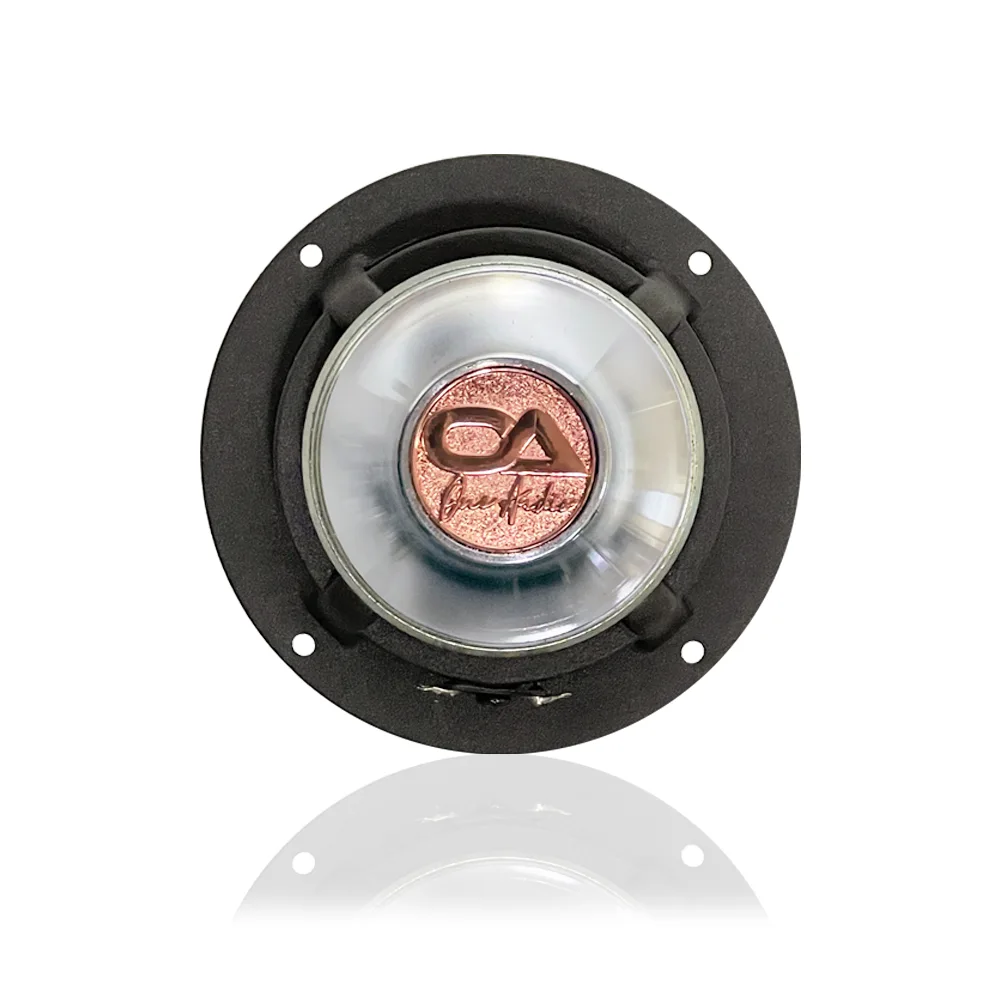

One Audio WB3.e

Speaker driver · Full-range driver

Suggest an update

Description

The WB3.e is our entry level 3" wideband driver with a bandwidth 150Hz-20kHz and an efficiency of 90 dB 1W/1m. Incredible efficiency and great off axis response and rising final octave make the WB3.e a natural choice for a tweeterless front stage. With an ultra efficient NdFeB motor, resonant free cast aluminum basket, rubber surround and proprietary paper pulp cone/cap the WB3.e assists in delivering unparalleled SQ from a budget friendly package. A copper pole sleeve linearize and reduce inductance for an increase in top octave performance.

Specifications

Resonant frequency, Fs 147 Hz
Linear excursion, Xmax 4.1 mm
